SHOCKLOG 248 FEATURES

  • Record max peaks X, Y, and Z and internal temperature
  • Record impact events
  • Optional temperature/humidity sensor can be built into unit
  • Field-proven triaxel piezoelectric accelerometer technology
  • iButton® and USB data transfer options
  • Self-contained unit design, free of cables and wires
  • User-definable alarm levels
  • LED lights for visual notification of alarms and warnings
  • Programmable wake-up values for maximizing battery life
  • IP67-rated, RF-screened
  • Show direction of impact—X, Y, and Z

ShockLog® 248

ShockWatch® ShockLog® 248 monitors and record impacts and environmental conditions experienced by any type of structure or equipment, whether it’s in use, in transit, or in storage. The device alerts you whenever damage may have occurred so you can respond promptly. ShockLog® impact recorders help deter mishandling by increasing accountability at every step of the journey.

The iButton® allows for easy access control during startup, shutdown and setup. A full journey report can be downloaded using the iButton while keeping the unit secure and tamper proof.

  • Records first plus the 14 most severe events (detailed curves)
  • Delivers notification of up to 128 events (event summary log)
  • Up to 262,000 time slots

SHOCKLOG 248 APPLICATIONS

  • Logistics / Transport and Storage
  • Chemicals/Petro-Chemicals
  • Aerospace and Defense
  • Auto and Truck Manufacturers
  • Furniture and Fixtures
  • Forestry and Wood Products
  • Musical Instruments/Equipment
  • Metal Fabrication
  • Energy and Utilities
  • Electronics – Telecommunications
  • Electronics – Computer Hardware
  • Auto and Truck Parts
  • HVAC
  • Manufacturing – Other
  • Consumer Products
  • Aerospace and Defense
  • Medical Devices and Supplies
  • Mining
  • Food and Beverage
  • Industrial Equipment
  • Marine
  • Robotics
  • Construction – Supplies and Fixtures
  • Electronics
  • Railroads
  • Biotechnology and Drugs
  • Packaging/Crating
  • Photography
  • Water Treatment / Filtration
  • Glass
  • Scientific and Technical Instruments / Research

Operating Temperature Range

-40°F to 185°F

Size

3.3 in x 3.3 in x 2.2 in

Weight

1.1 lbs (without battery)

Battery

One (1) 3.6V Lithium Thionyl Chloride OR One (1) 1.5V Alkaline Size AA

Battery Life

12 months

Scale Factor

+/- 2%

Acceleration Range (Factory Set)

+/- 10G, +/- 30G, +/- 100G

Cut-off Frequency Options

40 Hz, 90 Hz, and 250 Hz

Warning and Alarm Threshold (% of Range)

11–95%

Wake-Up Time

0.25 mS

Humidity

0–100% RH

Temperature

-40°F to 185°F

Dew Point

-40°F to 185°F, 0–100% RH

Operating Temperature Range

-40°C to 85°C

Size

84 mm x 84 mm x 55 mm

Weight

445g (without battery)

Battery

One (1) 3.6V Lithium Thionyl Chloride OR One (1) 1.5V Alkaline Size AA

Battery Life

12 months

Scale Factor

+/- 2%

Acceleration Range (Factory Set)

+/- 10G, +/- 30G, +/- 100G

Cut-off Frequency Options

40 Hz, 90 Hz, and 250 Hz

Warning and Alarm Threshold (% of Range)

11–95%

Wake-Up Time

0.25 mS

Humidity

0–100% RH

Temperature

-40°C to 85°C

Dew Point

-40°C to 85°C, 0–100% RH

Accessories

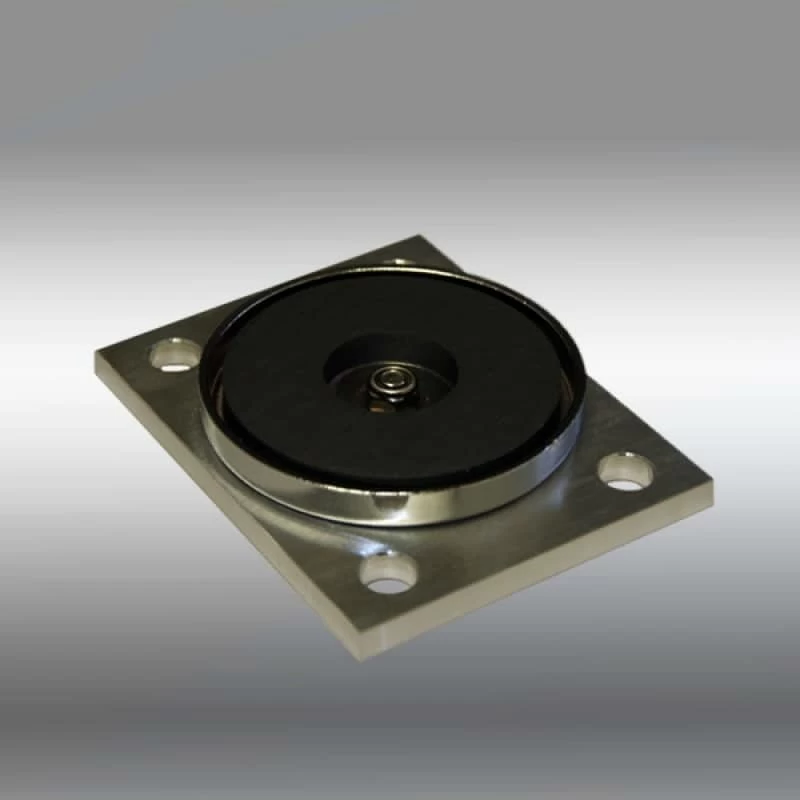

Magnetic Mount

ShockLog magnetic mounting plate kits are available for purchase. Once a ShockLog unit is attached to the mounting plate, the plate can be mounted to a metal surface.

ShockLog Companion Label

A companion label provides an additional visual warning and instructions on what to do if mishandling occurs.
