DISHWASHER TEST STRIPS FEATURES

  • Single or Three Temperature Event Label
  • Adhesive Backed
  • Negligible Residue Adhesive
  • Remove and Retain as a Permanent Record of Attained Temperature
  • Permanent Change From White to Black



Dishwasher Temperature Strips

What they are:

Thermostrip® DL is a self-adhering and waterproof color changing label that measures the surface temperature of dishware in dish washing machines. Using Thermostrip® DL on a dish surface with each wash cycle will provide a record that the proper sanitation temperature has been reached.

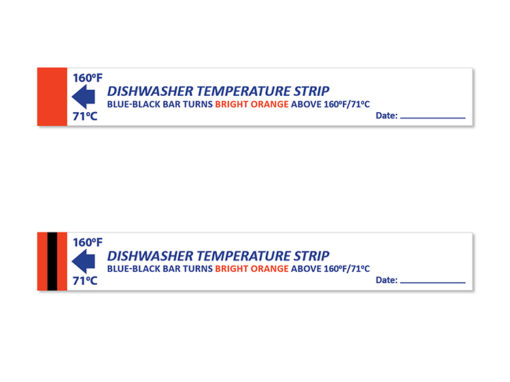

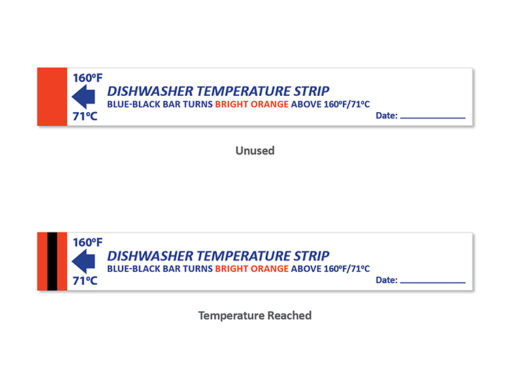

Thermostrip DS is a single use irreversible color changing indicator strip that tests the temperature of the water in your dishwasher and is designed to be dated, initialed and affixed to the wash batch record. Slotted strips ensure that the indicator is secured on to a utensil or tray, reducing the risk of the strip falling off during a wash cycle yet easily removed and attached to the batch record.

Thermocapture® DL is a personalized with QR code, self-adhering, waterproof, color-changing label that measures the surface temperature of dishware in dishwashers. Using Thermocapture DL on a dish surface with each wash cycle will indicate that the proper dishwasher temperature has been reached for sanitation.

Thermocapture App will photograph the irreversible temperature label capturing your information including the pass/fail color change and upload data and images to your password-protected web page.

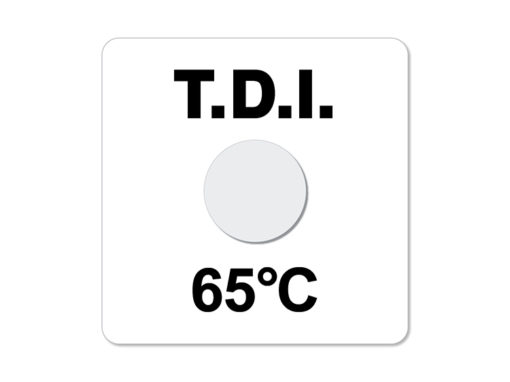

THERMAL DISINFECTION INDICATOR (TDI)

Developed to withstand extreme conditions of industrial dishwashers, TDI Labels form part of HACCP procedures, giving a permanent record of sterilization temperatures achieved.

These water resistant, irreversible labels are easy to use and accurate to +/- 1°C. Giving a permanent record of thermal disinfection temperatures achieved, they indicate when correct temperatures are not being achieved for evidence of health and safety due diligence.

Single Temperature Indicators are designed for regular and daily checks. Multi-Level temperature indicators are designed for a more in-depth check to prove what temperature level has been achieved.

Section 4.7 of the Food Code calls for food safety labels that measure sanitized food contact surfaces and utensils by an irreversible registering indicator.

How they work:

Read More

The temperature-sensitive elements are phase-change indicators which use the sharply defined melting points of a series of specially purified organic chemicals to give the unique, high precision, color change effects. Each temperature element uses a different chemical compound and is made separately by applying a coating containing the chemical to a special absorptive paper substrate. When the rated temperature is exceeded, the chemical melts and is absorbed by the substrate, causing a permanent color change.

Read Less

DISHWASHER TEST STRIPS APPLICATIONS

  • Commercial Dishwasher Surface and Water Temperature Disinfection Indicators Providing Proof of HACCP Compliance

Size

1/2" x 1 3/4"

Accuracy

Thermostrip DL & Thermocapture DL: ±2°F
Thermostrip DS: ±3°F

Range

140ºF to 180ºF



 #DescriptionCritical TempsSize
hermostrip-DL-1pt-140
P9001-24Single Temperature Point Label140ºF/60ºC1/2" x 1 3/4"
Thermostrip-DL-1pt-160
P9007-24Single Temperature Point Label160ºF/71ºC1/2" x 1 3/4"
Thermostrip-DL-1pt-180
P9009-24Single Temperature Point Label180ºF/82°C1/2" x 1 3/4"
Thermostrip-DL-3pt-150-160-170
P9003-16Three Temperature Point Label150/160/170ºF
65.5/71/76.5ºC1/2" x 1 3/4"
Thermostrip-DL-3pt-160-170-180
P9008-16Three Temperature Point Label160/170/180ºF
71/76.5/82ºC1/2" x 1 3/4"



 Item #DescriptionTemperaturePackagingSize
P9029 NDP25Single Temperature Point Strip160ºF - 71ºC25 / pack4" x 0.5"
P9030 NDP25Single Temperature Point Strip180ºF - 82ºC25 / pack4" x 0.5"



 Item #DescriptionTemperaturePackagingSize
P9029 NDP25Single Temperature Point Strip160ºF - 71ºC25 / pack1/2"x 1 3/4"



 DescriptionTemperaturePackagingSizeColor Change

Single event TDI● 65°C / 149°F
● 71°C / 160F°
● 82°C / 180°F
● 93°C / 199°F
Sold in reels of 100043mm x 14mmwhite to black

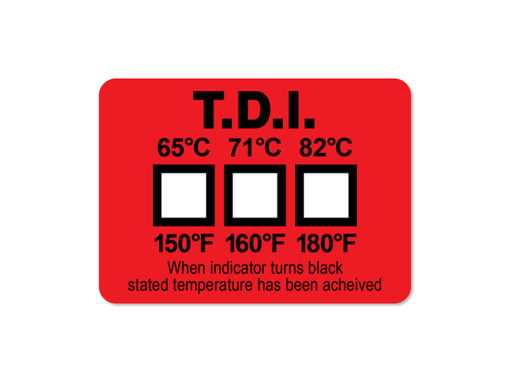

Triple event TDI● 65°C / 149°F - 82°C / 180°F
Sold in packs of 25/50 and reels of 100025 mm x 35 mmwhite to black
