TILTWATCH PLUS FEATURES

  • Degree of tilt detection
  • Complete overturn detection
  • Glass balls (non-magnetic)
  • Tamper-proof



TiltWatch Plus

TiltWatch Plus indicates whether there has been tilt to the left or right, the degree of the tilt, or if complete overturn has occurred.

TiltWatch Plus is actually three separate indicators in a single unit:

  • One section indicates the degree of tilt to the left
  • The second section indicates the degree of tilt to the right
  • The third section indicates total overturn

TILTWATCH PLUS APPLICATIONS

  • Biotechnology and Drugs
  • Office Equipment
  • Medical Devices and Supplies
  • Appliances
  • Construction Supplies and Fixtures



  • Agriculture
  • Logistics / Transport and Storage
  • Computer Hardware
  • Auto and Truck Parts
  • Packaging/Crating
  • Auto and Truck Manufacturers
  • Chemicals/Petro-Chemicals
  • Energy and Utilities
  • Scientific and Technical Instruments
  • Consumer Electronics
  • Electronics
  • Art
  • HVAC
  • Industrial Equipment
  • Furniture and Fixtures
  • Aerospace and Defense

Activation Angle

10° increments from 30° axis (±5°)

Monitoring Range

Single plane and rollover

Adhesive

1 mil high tack acrylic

Humidity Tolerance

5% to 99% noncondensing

Temperature Tolerance

-40°F to 140°F

Composition

Clear PTE housing and plastic indicator

Size

4.6 in x 4.6 in x 0.3 in

Installation

Pressure-sensitive adhesive exposed when liner and arming pin are peeled away

Adhesive Shelf Life

12 months (before application)

 Activation Angle

10° increments from 30° axis (±5°)

 Monitoring Range

Single plane and rollover

 Adhesive

1 mil high tack acrylic

Humidity Tolerance

5% to 99% noncondensing

 Temperature Tolerance

-40°C to 60°C

 Composition

Clear PTE housing and plastic indicator

 Size

116.84 mm x 116.84 mm x 7.62 mm

 Installation

Pressure-sensitive adhesive exposed when liner and arming pin are peeled away

 Adhesive Shelf Life

12 months (before application)

Part Numbers

TiltWatch Plus (includes Companion Labels) 24114

Accessories

Alert Tape

ShockWatch packing tape provides an unmistakable visual alert that impact indicators are in use and reinforcement that proper handling procedures are required.

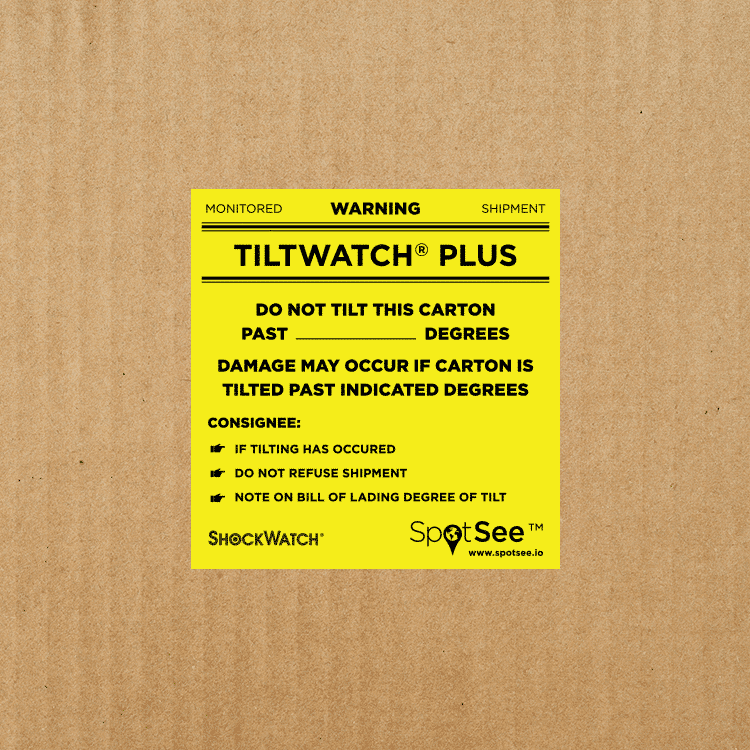

Companion Label

A companion label provides a visual warning that the package is being monitored and has instructions on what to do should mishandling occur.
