TILTWATCH XTR FEATURES

  • Greater than 80° tilt detection
  • Tamper-proof
  • Indicator will not activate under normal handling



TiltWatch XTR

The TiltWatch® XTR is single-use tip indicator used to monitor goods that must remain upright. Once applied to the packaging, the TiltWatch XTR will provide evidence of mishandling if the shipment is tipped. However, the tilt indicator remains unaffected by movement resulting from normal handling conditions.

TILTWATCH XTR APPLICATIONS

  • Consumer Electronics
  • Electronics
  • Packaging/Crating
  • Aerospace & Defense
  • Scientific and Technical Instruments
  • Auto and Truck Parts
  • HVAC
  • Appliances
  • Office Equipment
  • Furniture and Fixtures
  • Pipe Vibration
  • Computer Hardware
  • Glass
  • Logistics / Transport and Storage
  • Industrial Equipment

Activation Angle

80° ±5° from vertical

Monitoring Range

Single plane

Adhesive

2 mil high tack acrylic

Humidity Tolerance

5% to 99% noncondensing

Temperature Tolerance

-40°F to 140°F

Composition

Rigid polystyrene housing with non-magnetic steel indicator

Arming

Arms coincident with removal of adhesive liner

Size

2.92 in x 2.37 in x 0.21 in

Installation

Pressure-sensitive adhesive or holes to accommodate screws, nails, or staples

Customization

Cobranding available on orders over 5,000 pieces

Adhesive Shelf Life

2 years

Activation Angle

80° ±5° from vertical

Monitoring Range

Single plane

Adhesive

2 mil high tack acrylic

Humidity Tolerance

5% to 99% noncondensing

Temperature Tolerance

-40°C to 60°C

Composition

Rigid polystyrene housing with non-magnetic steel indicator

Arming

Arms coincident with removal of adhesive liner

Size

74.27 mm x 60.31 mm x 5.29 mm

Installation

Pressure-sensitive adhesive or holes to accommodate screws, nails, or staples

Customization

Cobranding available on orders over 5,000 pieces

Adhesive Shelf Life

2 years

Part Numbers

TiltWatch XTR 24101
TiltWatch XTR Companion Labels (200) 26102
TiltWatch XTR Companion Labels (500) 26103

Accessories

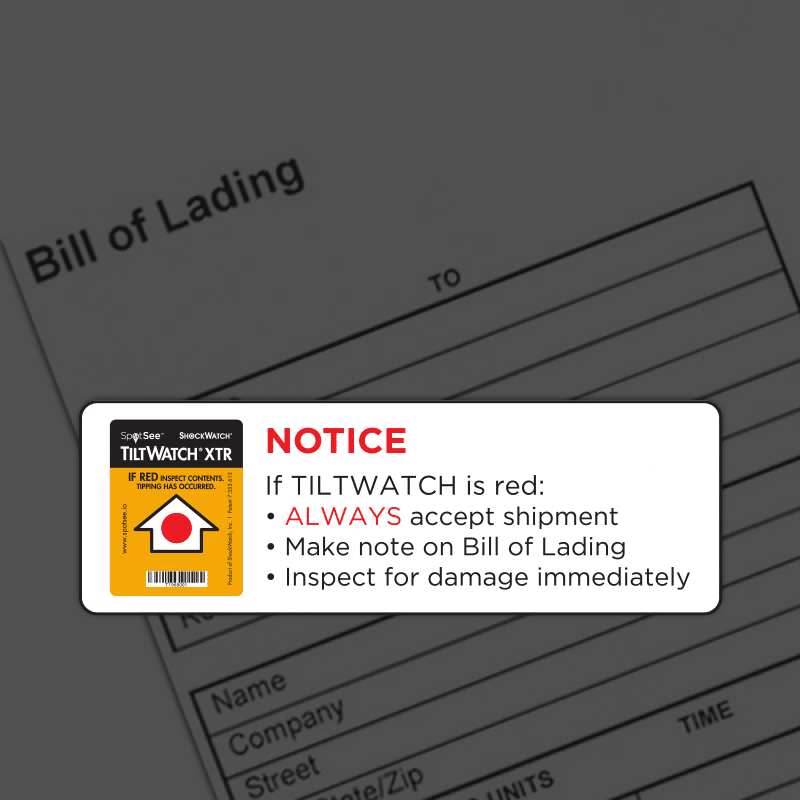

Alert Sticker

This unmistakable alert affixes directly to the bill of lading to caution the carrier and consignee that the shipment is being monitored for mishandling.

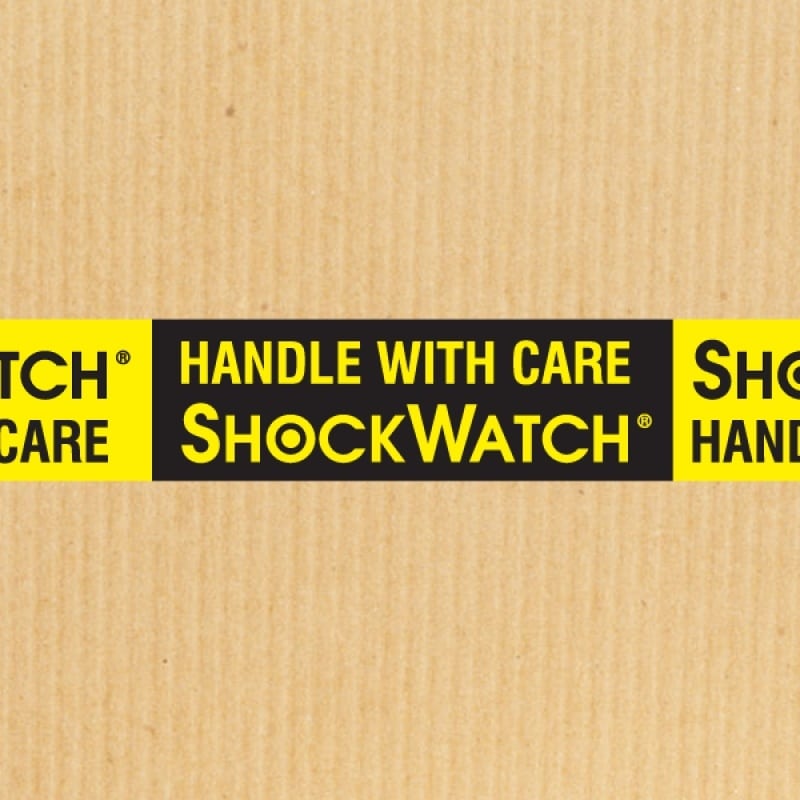

Alert Tape

ShockWatch packing tape provides an unmistakable visual alert that impact indicators are in use and reinforcement that proper handling procedures are required.

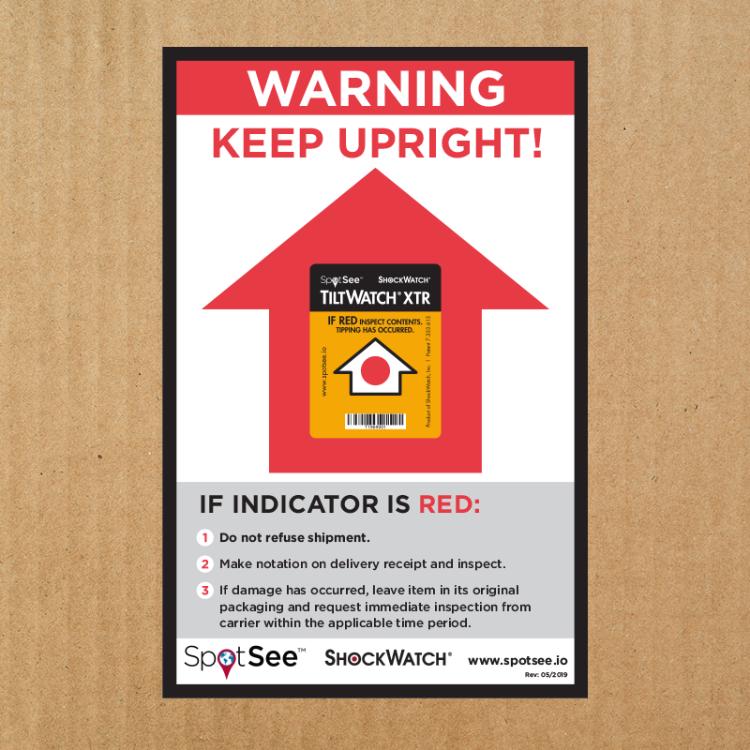

Companion Label

A companion label provides a visual warning that the package is being monitored and has instructions on what to do should mishandling occur.
