SHOCKLOG 298 FEATURES

  • Records impact events; max peaks X, Y, and Z; gRMS; and internal temperature
  • Sensors record direction, amplitude, and duration of impact force
  • Field-proven triaxial piezoelectric accelerometer technology
  • USB and iButton® data transfer options
  • Self-contained unit design, free of cables and wires
  • Programmable wake-up values for maximizing battery life
  • User-definable warning and alarm levels
  • LED lights for visual notification of alarms and warnings

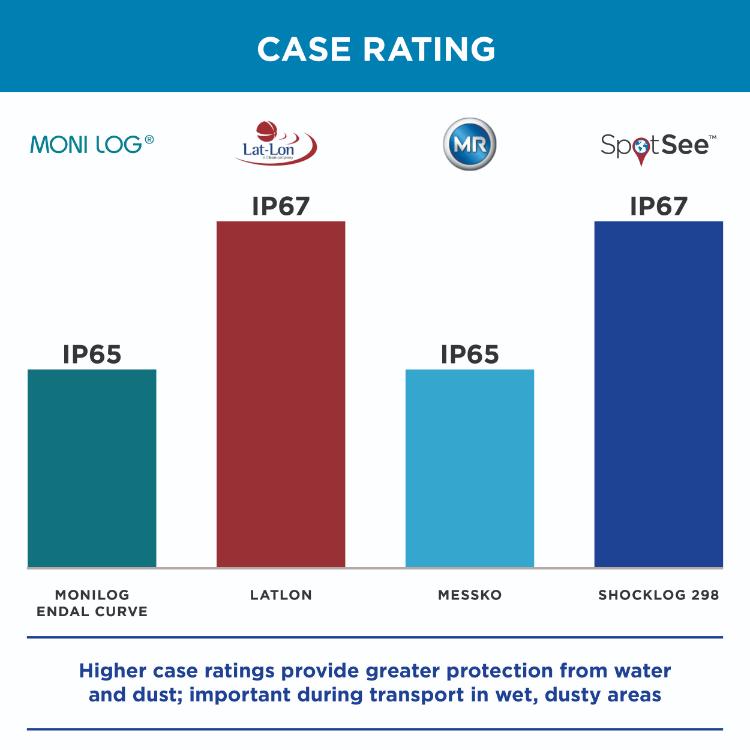

  • IP67-rated, RF-screened

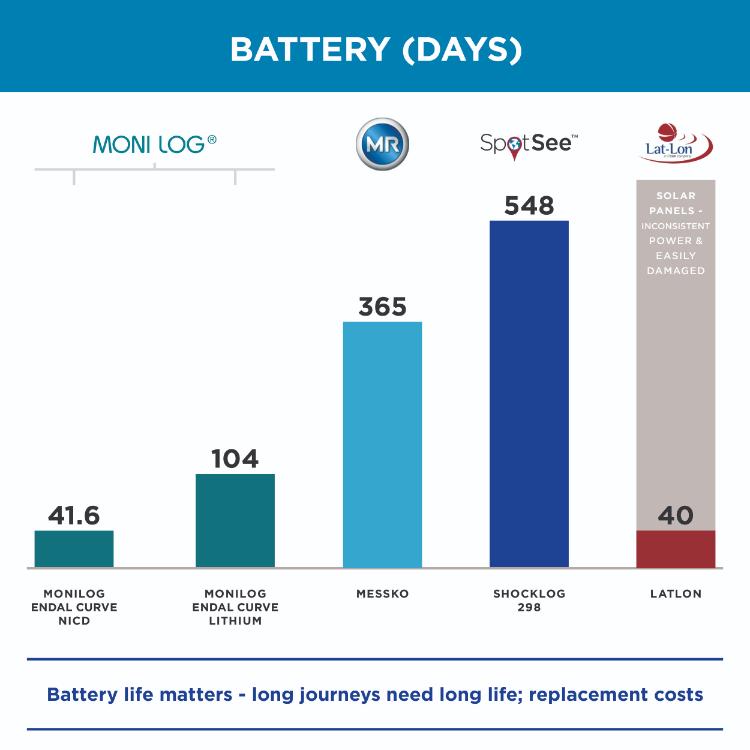

  • Up to 18 months of battery life
  • Option to build temperature/humidity sensor into unit, or add a temperature/pressure/humidity accessory sensor
  • Captures coordinates when event occurs at summary intervals with GPS (optional)
  • GPS allows users, through hyperlinks, to pinpoint the exact location of an event and summary with the use of Google Maps (optional)

ShockLog 298 Impact Recorder

ShockLog® 298 monitors and records shock, vibration, and environmental conditions experienced by any type of structure or equipment, whether in use, in transit, or in storage. With the capacity to record data for 870 events and 262,000-time slots, the device alerts you whenever damage may have occurred so you can respond promptly.

Optional sensors extend the value of your ShockLog by providing more intelligence about your environmental journey:

  • Option to build temperature/humidity sensor into unit, or add a temperature/pressure/humidity accessory sensor.
  • Cellular module for real-time, out-of-tolerance condition notifications via ShockLog Cellular module.
  • GPS module records positioning for every event and summary interval via ShockLog Satellite module.
  • Tilt and Roll includes a record of tilt and roll data.

Read More

ShockLog 298 Impact Recorder: Heavy Equipment Needs Care, Too

Heavy equipment seems indestructible. But, impacts, vibrations, temperature and humidity can cause even the most durable machinery to go out of calibration, increase wear on parts and, ultimately break down. It’s as true for mining equipment as it is for wind turbines and medical MRI scanners.

Knowing about issues before they occur requires data. There are three times when this is important: during shipping, during storage, and during operation.

The ShockLog 298 impact recorder provides the information managers and repair technicians need to verify equipment is undamaged and remains in top operating condition.

Impact data loggers monitor handling conditions to alert maintenance professionals to the potential for damage even before the equipment is installed. This data logger records impacts on the X, Y, and Z axes noting not just the direction of the impact but the amplitude, and duration of the impact. During shipping or storage, this information helps determine whether equipment was, for example, rammed by a forklift or dropped on a loading dock. When products are susceptible to extreme transport vibrations, the ShockLog 298 can provide vibration measurement as well as impact information.

For some equipment tilt and roll can jeopardize product quality. ShockLog 298 records that, too. Refrigerators, freezers and any product with a compressor pump are examples of products that are sensitive to tilt and roll.

Comprehensive Impact Data Logger Even Records Temperature, Pressure, Humidity

This shock monitor also records the equipment’s internal temperature, so you can chart operating conditions. An optional temperature/humidity or temperature/pressure/humidity sensor can be added for deeper insights.

Large, heavy equipment, regardless of industry, needs protection from impact, vibrations and, sometimes, pressure, temperature, and humidity. ShockLog 298 can alert you to suboptimal conditions before they become critical. This early warning is an important factor in optimizing operations and minimizing down-time.

Data Loggers with the Connectivity You Need

Real-time reporting of unacceptable conditions allows you to take action before the final delivery is made. Both the ShockLog Cellular and ShockLog Satellite solutions provide alerts of unacceptable conditions and report alarm conditions to the SpotSee Cloud.

The ShockLog 298 data logger combined with the ShockLog Cellular module provides notifications and location when alarm thresholds are exceeded and summary information during the journey.
The ShockLog Satellite module with GPS is another option for real-time notification and location information.. When shipments are traveling in remote areas and cellular networks are not available, the ShockLog Satellite is a valuable solution for logistics managers. With it, you can pinpoint when potentially damaging events happened and hold the right parties accountable.

If real-time notifications are not needed, condition reports can be transferred from the ShockLog 298 impact recorders to the ShockLog software with a USB connection or a transport report can be pulled from the unit over the iButton® interface.

While equipment is shipped and installed around the world, either the SpotSee Cloud or the ShockLog software provides valuable insight into the conditions your product encounters and your carriers’ actual handling practices. With these insights, you can make informed decisions regarding practices to improve your supply chain.

Read Less

The ShockLog 298 is offered as a stand alone or connected device:

ShockLog 298

  • Best in Class Impact Recorder
  • Not connected
  • Data download via USB
  • ShockLog Software for setup and analysis

ShockLog Cellular

  • Best in Class Impact Recorder
  • Connected via Cellular
  • Data in SpotSee Cloud and download via USB
  • ShockLog Software for setup and analysis

ShockLog Satellite

  • Best in Class Impact Recorder
  • Connected via Satellite
  • Data in SpotSee Cloud and download via USB
  • ShockLog Software for setup and analysis

SHOCKLOG 298 APPLICATIONS

  • Oil & Gas
  • Generators
  • Medical and Scientific Equipment
  • Large Medical Devices
  • Aerospace and Defense
  • Logistics and Transport
  • Break Bulk Cargo
  • Oversized Vehicles
  • Marine Services
  • Rail
  • Packaging/Crating
  • Industrial Equipment
  • Heavy Machinery
  • Mining Equipment
  • Any Heavy, Oversized Good

Operating Temperature Range

-40°F to to 185°F

Size

4.8 in x 3.1 in x 2.2 in

Weight

1.1 lbs

Battery

Two (2) 3.6V lithium OR two (2) 1.5V alkaline size AA

Scale Factor

+/- 2%

Additional Error Other Ranges

+/- 2%

Acceleration Range

+/- 1 to +/- 200G

Cut-off Frequency Options (Programmable)

10Hz, 40Hz, 50Hz, 90Hz, 120Hz, and 250Hz

Wake-up, Warning, and Alarm Threshold (% of Range)

5–95%

Wake-up Time

0.25 mS

External Power Source Option

4.5V min / 30V max

Software Compatibility

Windows 10, 8, 7, Vista, XP

Operating Temperature Range

-40°C to 85°C

Size

123 mm x 78 mm x 55 mm

Weight

515g (without battery)

Battery

Two (2) 3.6 V lithium OR two (2) 1.5 V alkaline size AA

Scale Factor

+/- 2%

Additional Error Other Ranges

+/- 2%

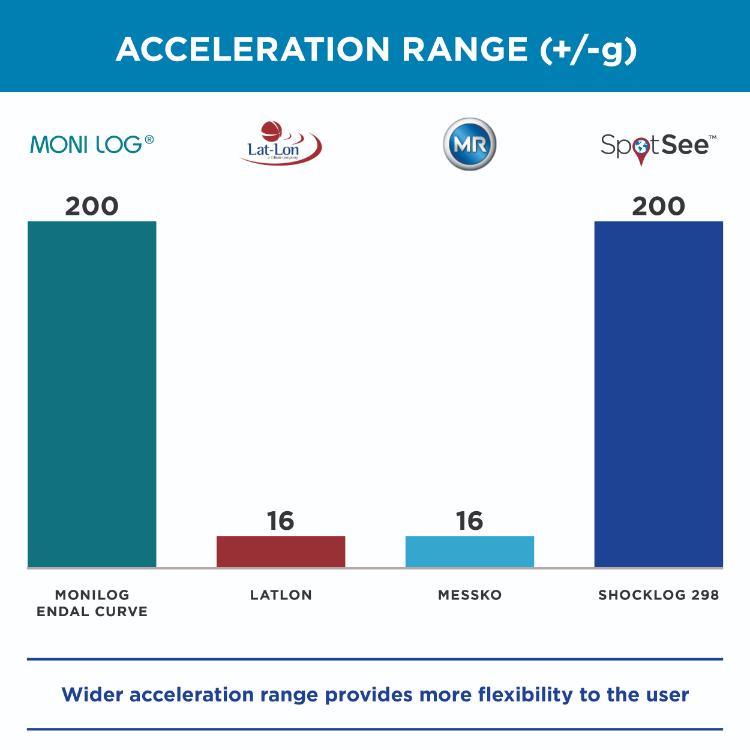

Acceleration Range

+/- 1 to +/- 200G

Cut-off Frequency Options (Programmable)

10Hz, 40Hz, 50Hz, 90Hz, 120Hz, and 250Hz

Wake-up, Warning, and Alarm Threshold (% of Range)

5–95%

Wake-up Time

0.25 mS

External Power Source Option

4.5V min / 30V max

Software Compatibility

Windows 10, 8, 7, Vista, XP

Technical Support

Below you will find technical support videos to help you get started once you have purchased our products and services.

Didn’t Find The Answer To Your Question?



Using ShockLog iButtons

ShockLog Software Overview

ShockLog Software Installation

ShockLog Quick Setup

ShockLog Configuration

ShockLog Battery Installation

ShockLog Advanced Configuration Settings

ShockLog Reviewing The Data

Accessories

Humidity, Pressure, Temperature Sensor

The HPT Environmental Sensor measures temperature, humidity and pressure. Data is recorded in time slots for easy analysis.

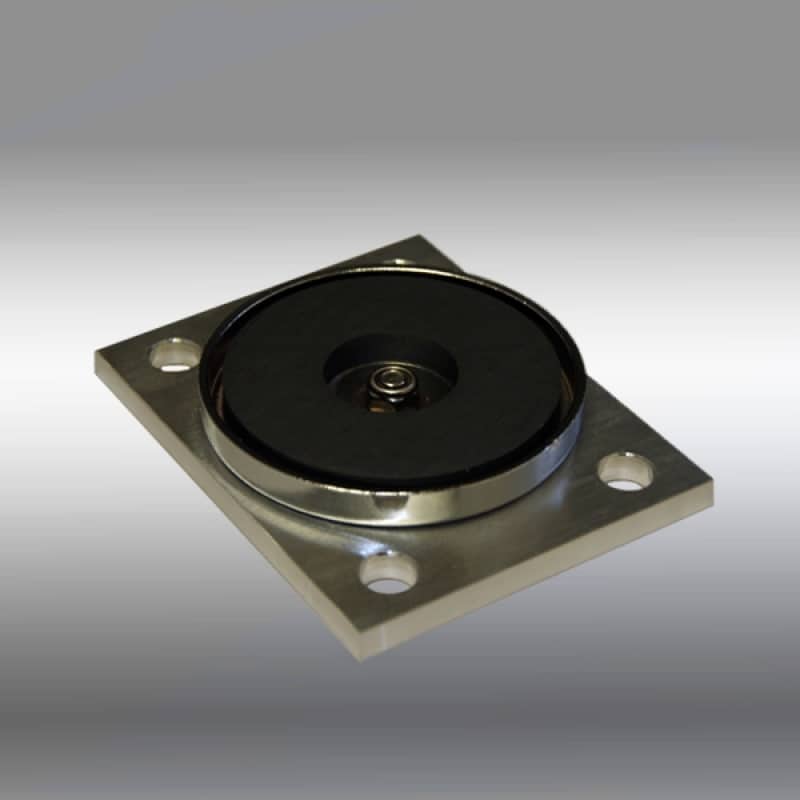

Magnetic Mount

ShockLog magnetic mounting plate kits are available for purchase. Once a ShockLog unit is attached to the mounting plate, the plate can be mounted to a metal surface.

ShockLog Companion Label

A companion label provides an additional visual warning and instructions on what to do if mishandling occurs.

Related Products

ShockLog Satellite

We added a satellite module to the world’s best impact recorder. Now you can get alerts as soon as an impact occurs.

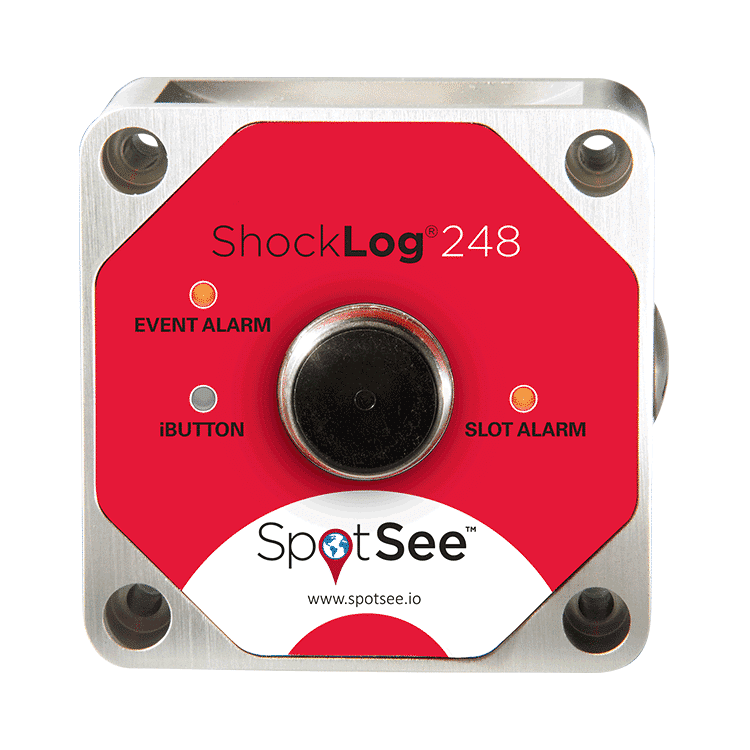

ShockLog 248
